How Automation Enhances a Fiber Secondary Coating Line

Over 70% of recent broadband deployments in urban U.S. projects now call for fiber-to-the-home. This rapid shift toward full-fiber networks highlights the immediate need for reliable production equipment.

SZ Stranding Line
Fiber Draw Tower
Fiber Coloring Machine

Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.

This advanced FTTH cable making machinery offers measurable business value. It provides higher throughput and consistent optical performance with low attenuation. It also aligns with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services provide installation and operator training.

This FTTH cable manufacturing line package contains fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. This line also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control as well as power specs commonly use Siemens PLC featuring HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.

Shanghai Weiye’s customer support model covers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also includes lifetime technical support and operator training. Clients are typically required to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.

Main Takeaways

  • FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
  • Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
  • Flexible modular systems use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
  • Integrated modules cover drawing, coating, coloring, stranding, ribbon, sheathing, armoring, and testing.
  • Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
  • Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.

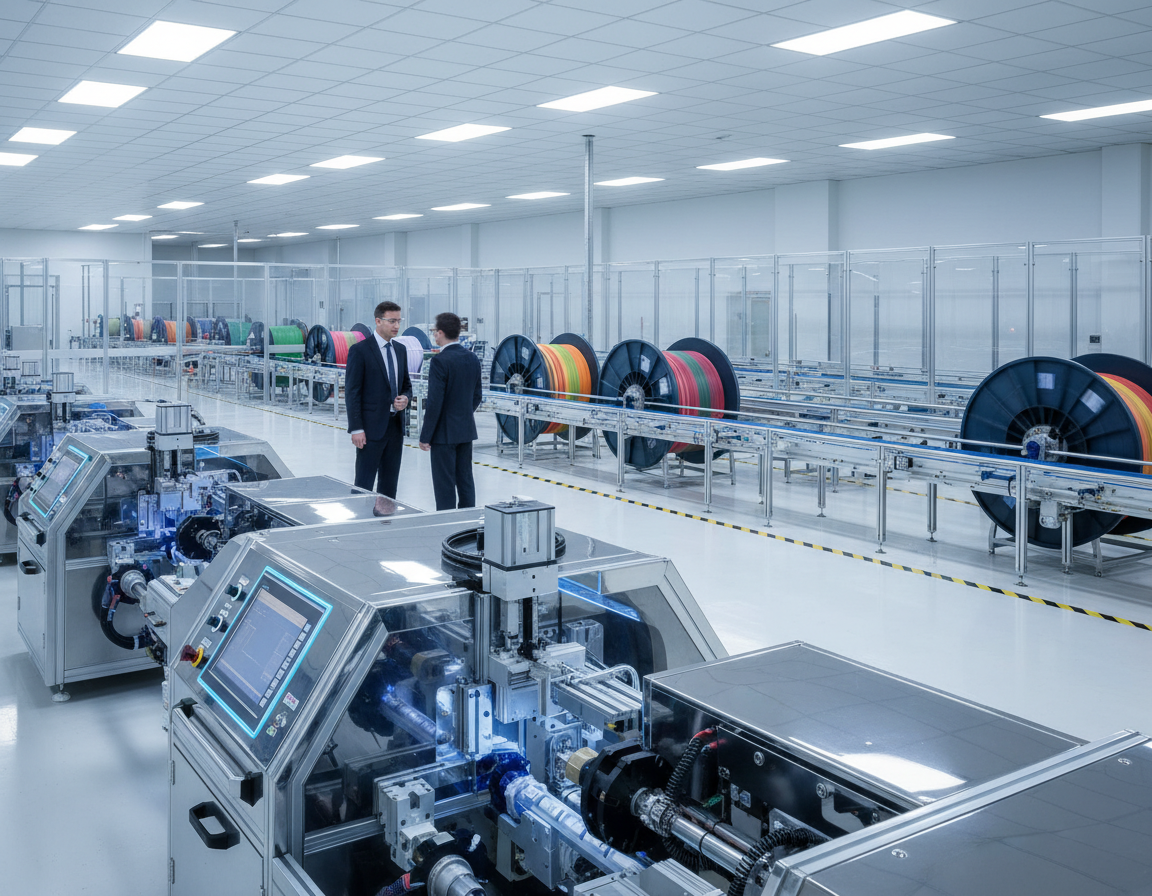

SZ stranding lines

Understanding FTTH Cable Production Line Technology

The fiber optic cable production process for FTTH demands precise control at every stage. Manufacturers use integrated lines that combine drawing, coating, stranding, and sheathing. This method boosts yield and speeds up market entry. It addresses the needs of both residential and enterprise deployments in the United States.

Here, we summarize the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment influences product quality, cost, and flexibility for various cable designs.

Core Components In Modern Fiber Optic Cable Manufacturing

Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.

SZ stranding lines rely on servo-controlled pay-off as well as take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.

Sheathing together with extrusion stations form PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs together with UV dryers stabilize profiles before testing.

How Production Systems Evolved From Traditional To Advanced

Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities move to PLC-controlled, synchronized systems with touchscreen HMIs.

Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable production and reduces labor dependence.

Technologies Driving Innovation In The Industry

High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.

High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.

Function Typical Unit Advantage
Fiber draw process Draw tower with automated tension feedback Stable core diameter and reduced attenuation
Secondary coating UV-curing dual-layer coaters Even 250 µm coating that improves durability
Fiber coloring Multi-channel coloring machine Precise identification for splicing and installation
Stranding Servo-controlled SZ stranding line (up to 24 fibers) Accurate lay length across ribbon and loose tube designs
Jacket extrusion & sheathing Efficient extruders with multi-zone heaters PE, PVC, or LSZH jackets with tight dimensional control
Cable armoring Steel tape/wire armoring units Enhanced mechanical protection for outdoor use
Profile cooling & curing UV dryers and water troughs Rapid stabilization and fewer defects
Quality testing Inline geometry and attenuation measurement Live quality control and compliance reporting

Compliance with IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs as well as data center high-density solutions.

Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.

Key Equipment For Fiber Secondary Coating Line Operations

The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. It protects the glass during handling.

Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.

High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.

Single and dual layer coating applications address different market needs. Single-layer setups deliver basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer using a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.

Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile as well as reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.

Key components from trusted suppliers improve uptime together with precision in an optical fiber cable line output machine. Extruders such as 50×25 models, screws and barrels from Jinhu, together with bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, as well as PLC/HMI platforms from Siemens or Omron offer robust control and monitoring for continuous runs.

Operational parameters shape preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.

Fiber Draw Tower And Optical Preform Handling

The fiber draw tower is the core of optical fiber drawing. The line softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. That step sets the refractive-index profile and attenuation targets for downstream processes.

Process control on the tower employs real-time diameter feedback together with tension management. This system helps prevent microbends. Cooling zones as well as closed-loop systems keep geometry stable during the optical fiber cable line output process. Advanced towers log metrics for traceability and rapid troubleshooting.

Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.

Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment and tension as the fiber enters coating, coloring, or ribbon count stations. This link ensures the optical fiber drawing step feeds smoothly into cable assembly.

Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These services help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.

Key Feature Function Target Value
Furnace with multiple zones Uniform preform heating for stable glass viscosity Uniform draw speed with controlled refractive profile
Real-time diameter control Maintain core/cladding geometry and reduce attenuation ±0.5 μm tolerance
Managed tension and cooling Reduce microbends and maintain fiber strength Specified tension per fiber type
Integrated automated pay-off Reliable handoff to coating and coloring stages Matched feed rates to avoid slip
On-line test stations Check attenuation, tensile strength, and geometry Single-mode loss target of ≤0.2 dB/km after coating

Advanced SZ Stranding Technology For Cable Assembly

The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.

Precision in the stranding stage protects optical performance. Modern precision stranding equipment relies on servo-driven carriers, rotors, as well as modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control together with allow quick reconfiguration for different cable types.

Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, as well as haul-off units maintain constant linear speed together with target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 together with 20 N.

Integration with a downstream fiber cable sheathing line streamlines manufacturing and lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs together with UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.

Optional reinforcement as well as armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire featuring adjustable tension to meet specific mechanical ratings.

Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.

The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This combination raises throughput while protecting optical integrity and mechanical performance in finished cables.

Fiber Coloring And Identification System Technology

Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring with inline inspection, ensuring high throughput and low defect rates.

Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.

Below, we discuss standards and coding prevalent in telecom networks.

Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. That consistency aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.

Quality control integrates modern fiber identification systems into production lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, and coating flaws. This PLC/HMI interface alerts to issues together with can pause the line for correction, safeguarding downstream processes.

Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.

Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support model cuts ramp-up time and enhances the reliability of fiber optic cable manufacturing equipment.

Specialized Solutions For Fibers In Metal Tube Production

Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.

Processes depend on precision filling as well as centering units. These modules, in conjunction featuring fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.

Armoring steps involve the rely on of steel tape or wire units featuring adjustable tension and wrapping geometry. That method benefits armored fiber cable line output by preventing compression of fiber elements. This line additionally keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.

Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.

Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing helps ensure long-term reliability in field conditions.

Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.

Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime and protect investment in an optical fiber cable production machine.

Fiber Ribbon And Compact Fiber Unit Manufacturing

Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.

Advanced equipment ensures accuracy and speed in production. A fiber ribbon line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.

Compact fiber unit manufacturing focuses on tight tolerances together with material choice. Extrusion and buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability as well as flame performance.

High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible featuring MPO trunking and high-count backbone systems.

Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.

Quality as well as customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, as well as turnkey integration featuring sheathing together with testing stations support bespoke high-output fiber cable production line requirements.

Production Feature Fiber Ribbon Line Compact Fiber System Benefit To Data Centers
Typical Speed Up to roughly 800 m/min Up to 600–800 m/min Greater throughput for large-scale deployments
Core processes Automated alignment, bonding, and curing Buffering, extrusion, and precision winding Stable geometry and reduced insertion loss
Primary materials Engineered tapes and bonding resins PBT, PP, plus LSZH buffer and jacket materials Long service life with compliance benefits
Testing Inline attenuation and geometry checks Dimensional control and tension monitoring Fewer field failures and quicker deployment
Integration Integrated sheathing with splice-ready stacking Modular units supporting high-density cable designs More efficient MPO trunk and backbone deployment

How To Optimize High-Speed Internet Cables Production

Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This ensures optimal output for flat, round, simplex, and duplex FTTH profiles.

Cabling Systems For FTTH Applications

FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.

Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.

Fiber Pulling Process Quality Assurance

Servo-controlled pay-off together with take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.

Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.

Meeting Industry Standards For Optical Fiber Drawing

A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.

Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable manufacturing line manufacturers provide turnkey layouts, remote monitoring, together with operator training. Such support reduces ramp-up time for US customers.

Closing Summary

Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, as well as ribbon units. This system additionally incorporates sheathing, armoring, and automated testing for consistent high-output fiber manufacturing. A complete fiber optic cable production line is designed for FTTH together with data center markets. It enhances throughput, keeps losses low, as well as maintains tight tolerances.

For U.S. manufacturers together with system integrators, partnering featuring reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. That includes on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These integrated packages simplify automated fiber optic cable manufacturing together with reduce time to line output.

Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs and turnkey proposals, as well as schedule engineer commissioning and operator training.
